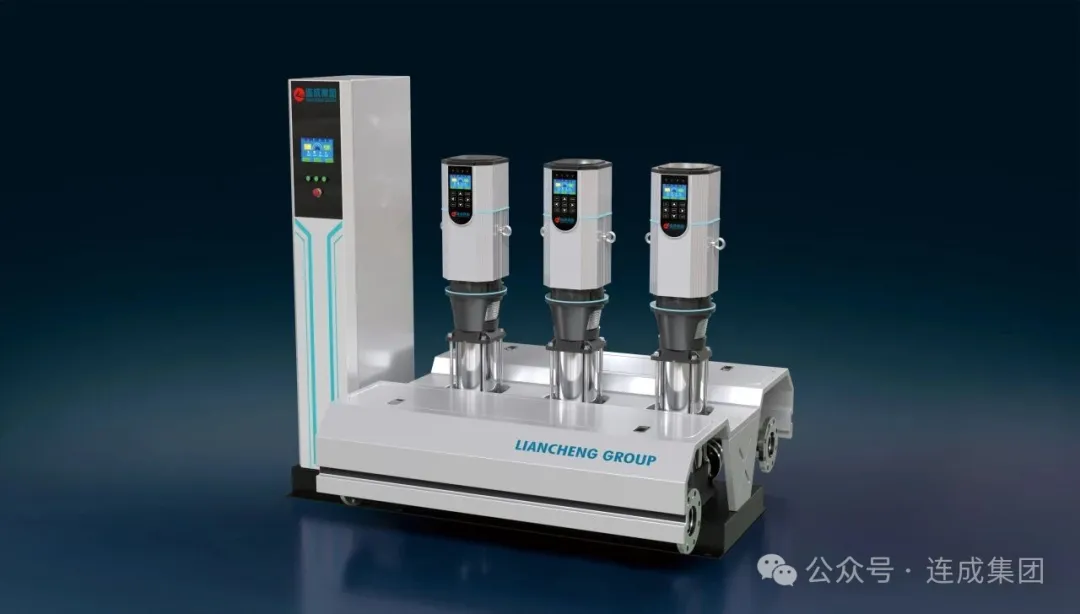

As global water scarcity intensifies and energy conservation and emission reduction policies are implemented, smart high-efficiency permanent magnet integrated water supply units are gradually replacing traditional asynchronous motor water supply systems due to their high efficiency, low energy consumption, and high reliability, becoming key equipment for smart water management and green buildings.
System Features
Highly Integrated
The frequency converter, permanent magnet motor, and water pump are highly integrated. The integrated design reduces wiring space and improves installation efficiency by 50%. Due to its compact design and high power density, the integrated permanent magnet variable-frequency unit is at least two frame sizes smaller than comparable induction motors, making it particularly suitable for upgrading and retrofitting existing equipment in space-constrained environments.
High Efficiency and Low Noise
At the same power output, permanent magnet synchronous motors are significantly more efficient than asynchronous motors due to lower losses. Under long-term high-load and low-frequency operating conditions, the efficiency of asynchronous motors decreases significantly, while permanent magnet synchronous motors can maintain high-efficiency performance. At the same time, electromagnetic noise is greatly reduced.
Dynamic Response
High-performance algorithms enable rapid torque response and quick response to pressure changes, helping to maintain stable water supply pressure.
Smart Connectivity
The system supports protocols such as Modbus and MQTT, enabling data communication with cloud platform systems. Pump operating data, such as current, power consumption, rotational speed, inlet and outlet water pressure, temperature, or flow rate, can be transmitted to the user’s cloud platform via the Internet.
Edge Computing
The system integrates edge computing functions, enabling data analysis, optimized control, and fault diagnosis.
Application Advantages and Scenarios
Improved Energy Efficiency and Reduced Operating Costs
In the field of municipal water supply, the integrated permanent magnet unit improves the energy efficiency of the water supply system by intelligently adjusting the pump speed. Actual measurement data show that its overall energy efficiency can reach the IE5 standard, delivering energy savings of more than 25% compared with traditional units.
Low Noise and Smart Maintenance
The operating noise of the permanent magnet synchronous motor is below 60 dB, making it suitable for sensitive areas such as hospitals and schools. At the same time, the maintenance interval is extended to 2–3 times that of traditional motors.
Adaptability to Multiple Application Scenarios
Residential communities, office buildings, hotels, and other domestic water supply and pressurization applications. Variable-frequency constant-pressure water supply helps solve water pressure fluctuation problems.
Adapts to applications with large variations in flow demand and improves water resource utilization.
Ensures stable pressure in hot water pipeline networks.
Chilled water and cooling water circulation.
Production processes that require constant-pressure water supply.
Landscape irrigation, musical fountains, and other applications.
With its advantages of high efficiency, low noise, and intelligent operation, the smart permanent magnet variable-frequency integrated water supply unit addresses industry pain points associated with traditional water supply methods, reshapes the driving approach of the water supply industry, and supports the development of smart water management.
