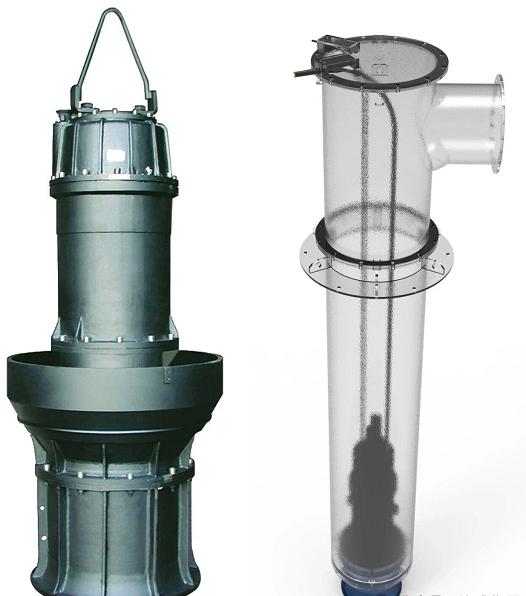

QZ/QH series submersible axial (mixed) flow Pump
Submersible shaft (mixed flow) pump is a kind of pump product which integrates submersible motor and water pump and can be immersed in water for a long time. The hydraulic design of axial flow pump is based on the lift theory in aerodynamics. When the impeller rotates at high speed, the liquid medium in the pump will be subjected to the axial lift generated by the impeller, thus driving the water flow in the axial direction. The liquid medium in mixed-flow pump is subjected to centrifugal force and axial lift at the same time, and the water flow direction of the impeller outlet is oblique. The motor is usually a dry totally enclosed submersible three-phase asynchronous motor, and the surrounding fluid medium has a good cooling effect on the motor.
Suitable for conveying clean water, rainwater, river water, sewage and other liquid media similar to clean water. The temperature can reach 40℃ and the PH value is between 4 and 10.
Working conditions:
Flow range: 0.12 ~ 11m3/s
Head range: 1.5 ~ 25m
Matching power: 5.5～1200 kW
Voltage：380 V、660 V、6 kV、10 kV
1. Excellent hydraulic model is adopted, and CFD simulation calculation and analysis are carried out, so that the pump has high operating efficiency and wide efficient area, and the performance requirements of users are ensured.
2. The blade is semi-adjustable, and the blade angle can be adjusted according to the customer's demand, which can meet the customer's actual operation in an efficient area.

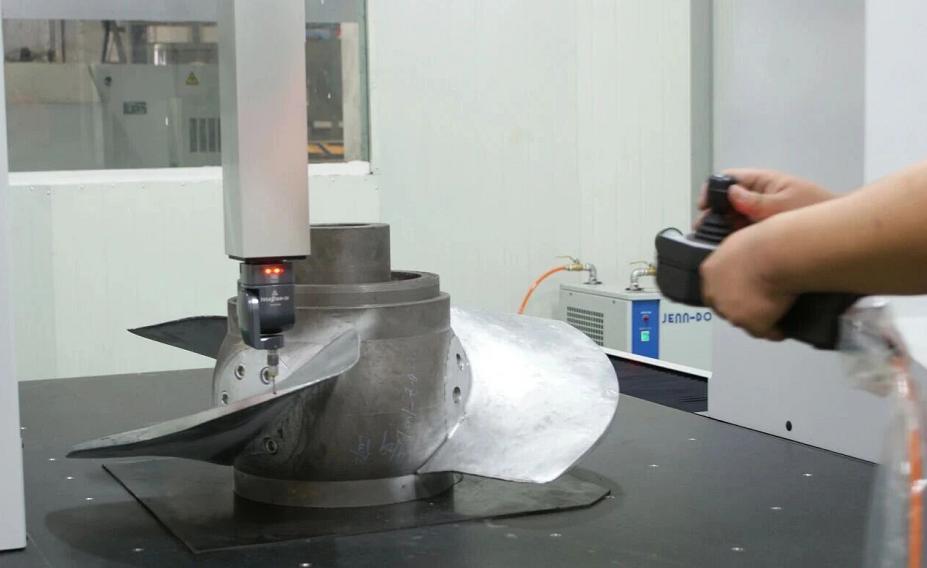

Three-coordinate measurement of impeller surface of axial flow pump
3. Double and multiple mechanical seals can reliably prevent water leakage and prolong the maintenance cycle of the pump.
4. When the electric pump is running, the axial force and radial force are respectively provided with independent bearings, which have reasonable structural design, sufficient lubrication, good heat dissipation and long service life.
5. The motor adopts F-class insulation, which is high temperature resistant and equipped with temperature protection alarm device; The motor protection grade IPX8 ensures the safety and reliability of operation.
6. The cable inlet seal adopts a special full seal design, and the cable adopts a multi-layer seal compression structure, and the cable seal reliability is guaranteed by fixing.
7. The electric pump is equipped with winding overheating and leakage protection monitoring, and optional bearing overheating, bearing vibration and humidity monitoring to protect the reliable operation of the electric pump.

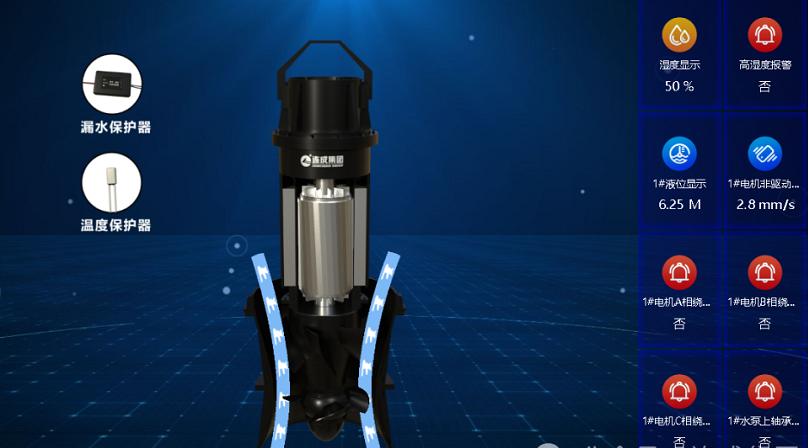

8. It can automatically collect the parameters of overheating, leakage, bearing overheating, bearing vibration and humidity of the electric pump, transmit them through the Internet and connect them into a smart cloud platform. Through the calculation, analysis and judgment of the cloud platform, the intelligent alarm and early warning functions are realized.
9, automatic and intelligent remote monitoring, operation and maintenance management, low operating cost.
10. The pump dives into the water, with good cooling conditions, good running balance, stability, small vibration and low noise.
11. The vertical installation of the pump has the advantages of small floor space, small pump station scale, simple civil and architectural structure, greatly reduced investment, and 30% ~ 40% of the project cost of the pump station can be saved.

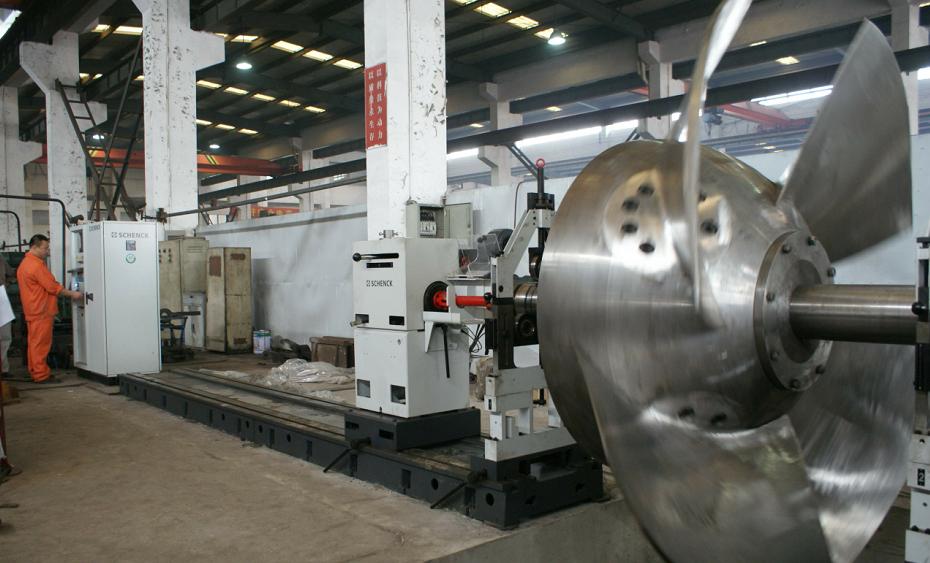

Mixed-flow pump impeller does dynamic balance
Application area
(I) Agricultural field
It is suitable for large-scale farmland irrigation, can efficiently pump water from rivers, lakes and other water sources to the fields, meet the needs of farmland for water resources, and can also be used for farmland drainage.
(II) the field of urban construction
1. As an important part of urban drainage system, it is mainly used for municipal drainage and flood control and drainage, which provides power for urban rainfall and road water accumulation through pressurization, ensures the smooth transportation of rainwater in municipal pipe network and quickly discharges it to urban sewage treatment plants.
2. It can be used for water intake in waterworks, lifting pumping stations and rainwater pumping stations in sewage treatment plants.
(III) Industrial field
It is suitable for industrial circulating water system, cooling water circulation, water supply and drainage of industrial and mining docks and power stations.
(IV) The field of entertainment
Can be used for amusement park entertainment projects, such as swimming pool wave making, water rafting and so on.
(V) Field of water conservancy projects
It is used for water resources allocation of rivers and reservoirs to meet the needs of various water conservancy projects.
Shanghai Liancheng Group is a first-class professional manufacturer of water supply and drainage, water treatment and intelligent monitoring in China, integrating technology research and development, manufacturing, sales and service. On the basis of digesting and absorbing foreign advanced technology, our products are jointly developed with domestic colleges and universities, and the quality is guaranteed. At the same time, we can provide professional and complete system solutions and perfect pre-sale, sale and after-sales services according to different needs of customers.
